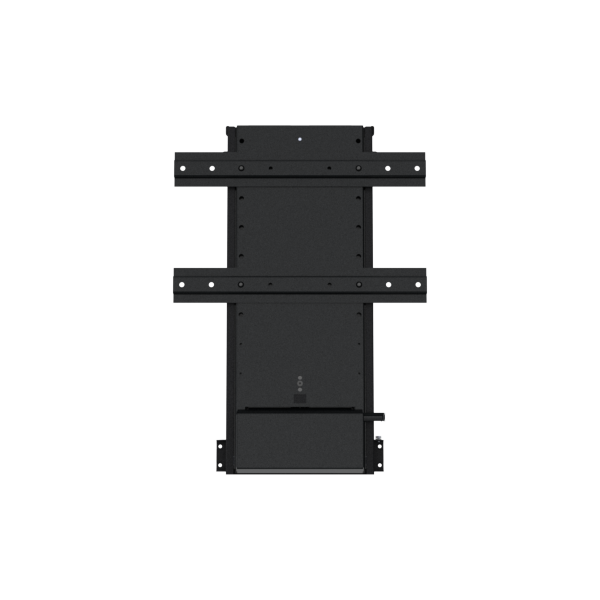

TS700A - 700mm Stroke TV Lift - Screens up to 50"

Manufacturer: Venset

Code: TS700A

The TS700A from Venset is designed for small to large LCD/plasma screens.

The lift has an incredible 700mm stroke compared to the required build-in height, which makes this unit usable for installation almost everywhere. The stroke can also be adjusted to limit the stroke height and/or the stroke drop.

Furthermore, this lift has an anti-squeeze function. If the moving parts of the lift or the Plasma/LCD mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse. The pressure given before reversing is equal to the weight of the TV that is mounted.

Quantity

Optional Extras

  • Swivel Head (Up to 46" TVs): +£89.00

  • Additional Remote: +£19.00

£326.00 ex VAT

In stock

Specifications

Product
Colour
Black
Dimensions
W:286mm H:600mm D:72mm
Screen Mount
Type
Build-In
Min TV Size
27"
Max TV Size
50"
Vesa Compatibility
100x100 200x100 200x200 300x300 400x100 400x200 400x300 400x400
Motorised Lift
Stroke Length
700mm
Control Options
RF Remote Physical Switch
Safety Features
Anti-trap

Key Features

  • 700mm Stroke/Lifting Height.
  • Remote controlled with RF.
  • Peak load of 100 kg and a working load of 65kg Mounted Upside-Up/29kg Mounted Upside-Down (see specifications).
  • Fits VESA: 400x400, 400x300, 400x200, 400x100, 300x300, 200x200, 200x100, 100x100
  • Compatible with all standard TV Brands
  • For use with Hinged lid cabinets ONLY

Package Includes

  • TS700a TV Lift with Multi VESA bracket
  • Control Module
  • UK Power Supply
  • RF Remote Control

Additional Information

How many remotes can I pair up to a TS700A/1000A?

Up to 10 remotes can be paired to these TV lifts at the same time.

Manufacturer Advice Regarding Hinged Lids On Cabinets?

These are powerful lifts and sudden impact / crash effect on the motor can cause damage. The cabinet design is the domain of the cabinet maker but for a general rule any hinged lid should be designed so that at the point of contact by the lid lifter bracket the cabinet lid can be easily pushed open with the tip of one finger.
