TS600B - 600mm Stroke TV Lift for LCD & Plasma

Manufacturer: Venset

Code: TS600B

A compact TV lift for lightweight installation where small build in height is important

The TS600B from Venset is an electric flat lift with integrated auto-stop function.

A very slim, flat-lift/TV-lift designed for use in TV beds kitchen cupboards and other furniture, where slimness is of high importance.

The back of the TS600B is flat without any protruding screws or intrusive features, which makes this lift perfect in environments where the lift is visible from the back side.

Before purchasing, please read the note regarding weight in the additional information section.

Quantity

£265.00 ex VAT

In stock

Specifications

Screen Mount

Type

Build-In

Min TV Size

19"

Max TV Size

40"

Max TV Weight

8kg

Vesa Compatibility

100x100, 200x100, 200x200

Motorised Lift

Stroke Length

600mm

Lift Capacity

8kg

Ceiling Mountable

Yes

Lift Capacity (ceiling mounted)

8kg

Control Options

RF Remote, Physical Switch

Safety Features

Load Limiting

Key Features

  • Maximum thickness just 45mm
  • Minimum installation height of only 50 cm
  • 60 cm of travel from 50 cm to 110 cm height
  • Automatic anti-squeeze auto-stop safety
  • Easy to adjust endstops, so you can set the height range
  • Can be used upside down, downside up and horizontal
  • VESA TV/Monitor bracket MB600 that fits the VESA standards: 200x200 | 200x100 | 100x100

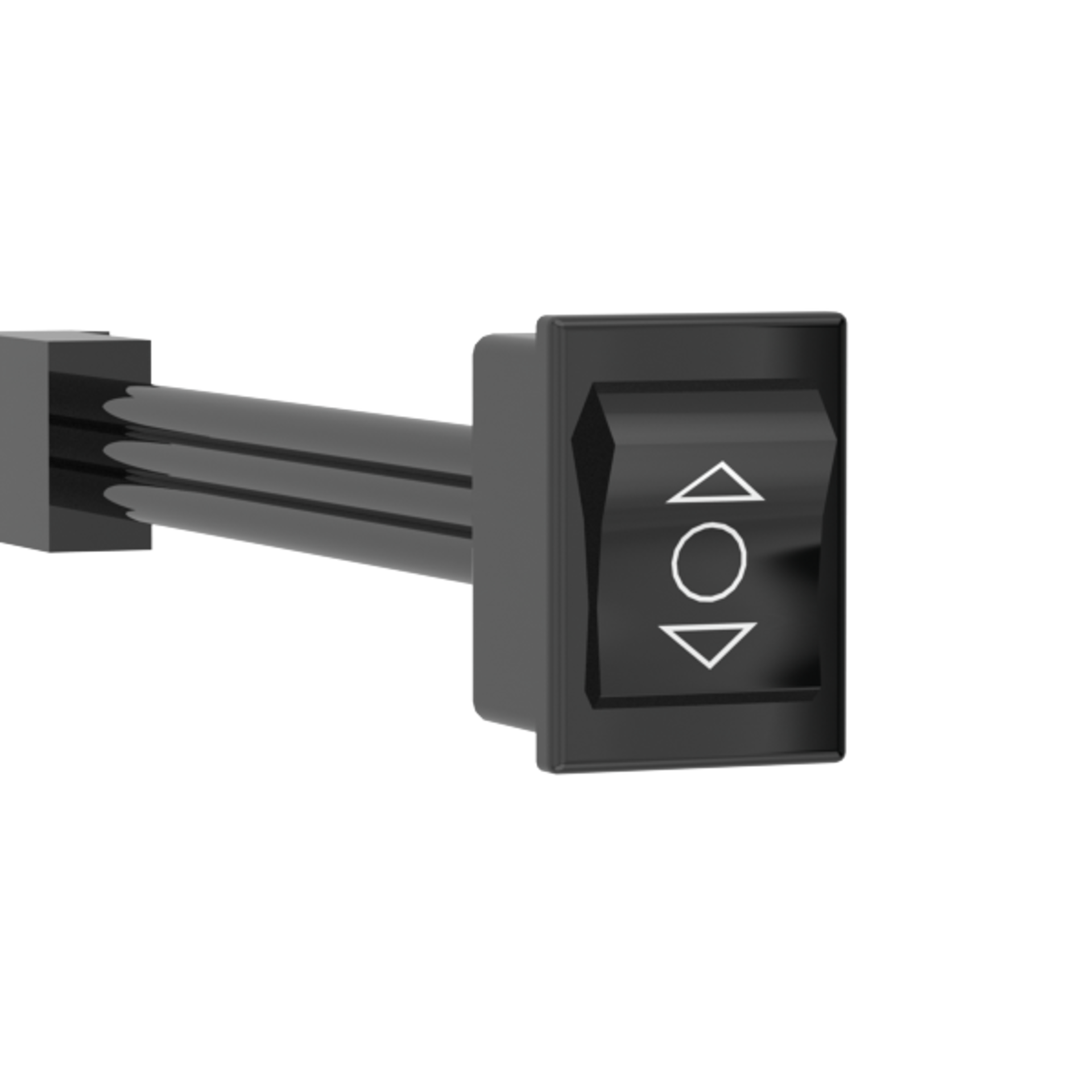

  • Controlled with rocker switch or RF Remote Control

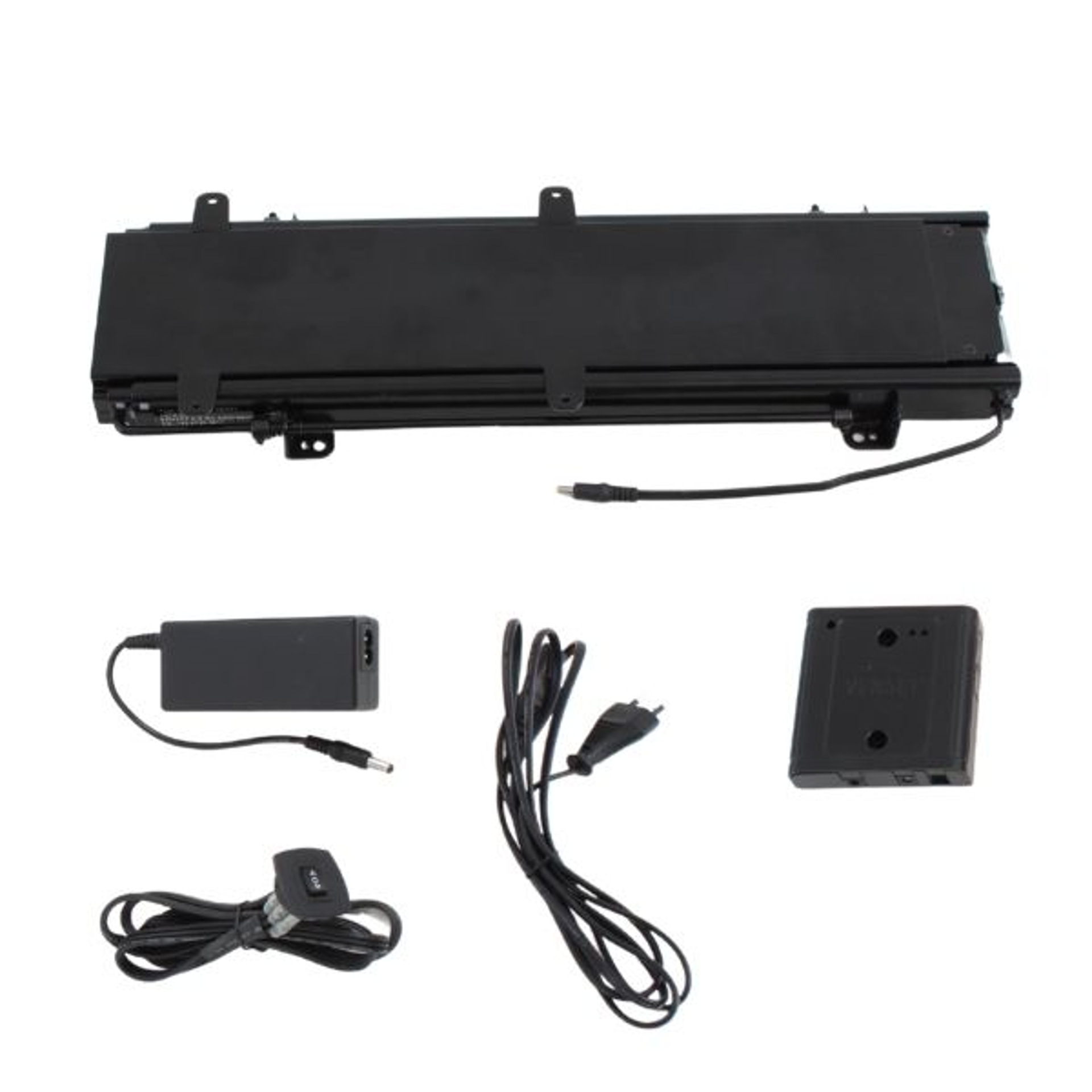

Package Includes

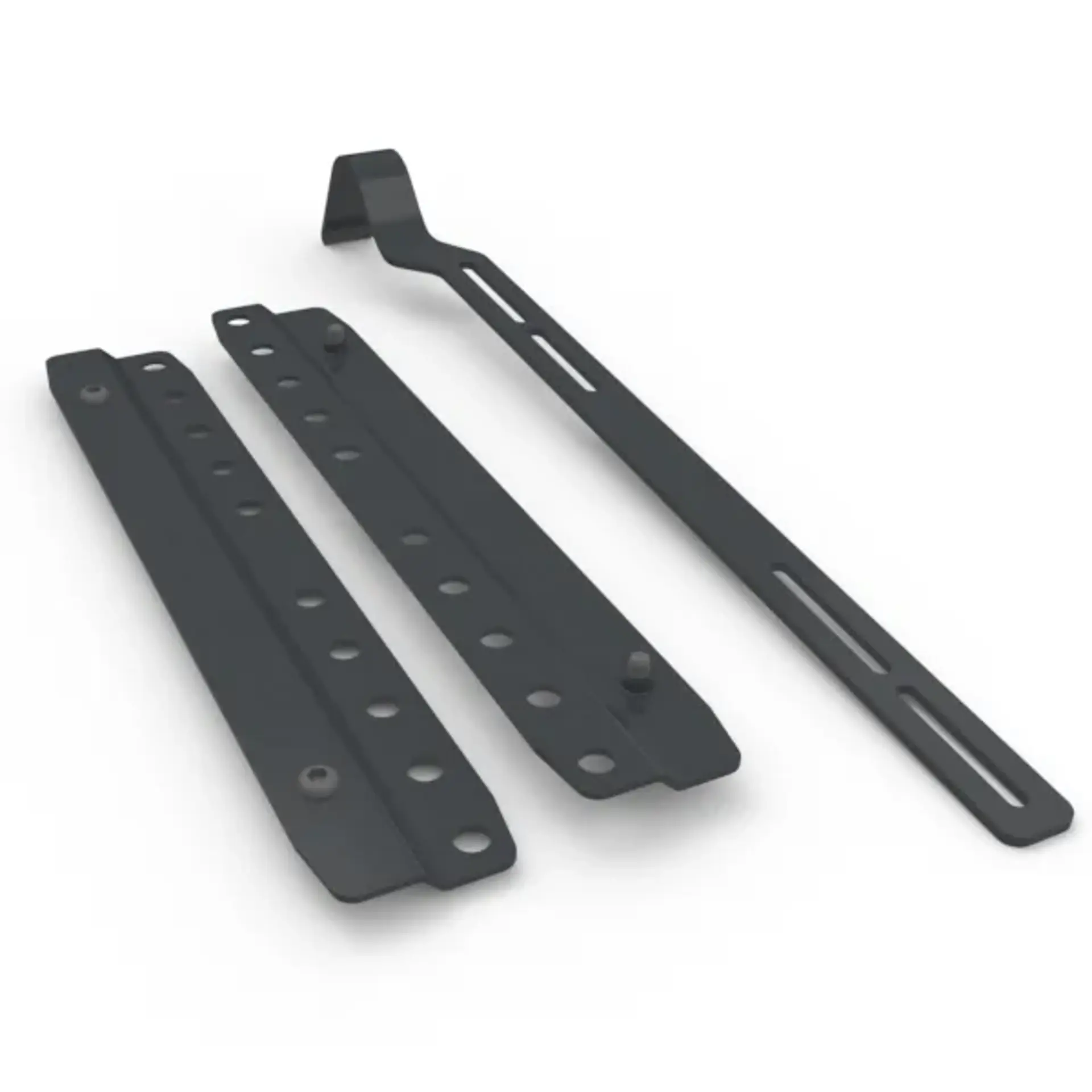

  • TK600 B1 Hinged lid and multi VESA bracket kit
  • Control Module
  • UK Power Supply
  • RF Remote Control

Additional Information

Important information about hinged lids

The weight of the hinged cabinet lid must be included in your total load calculation.  The cabinet should be designed in a way minimises the weight of the hinged lid and should be easy to lift with one finger.  For example, no spring closers or dampened hinges.  Please read the instructions carefully before purchasing.
