Hidden TV Logo

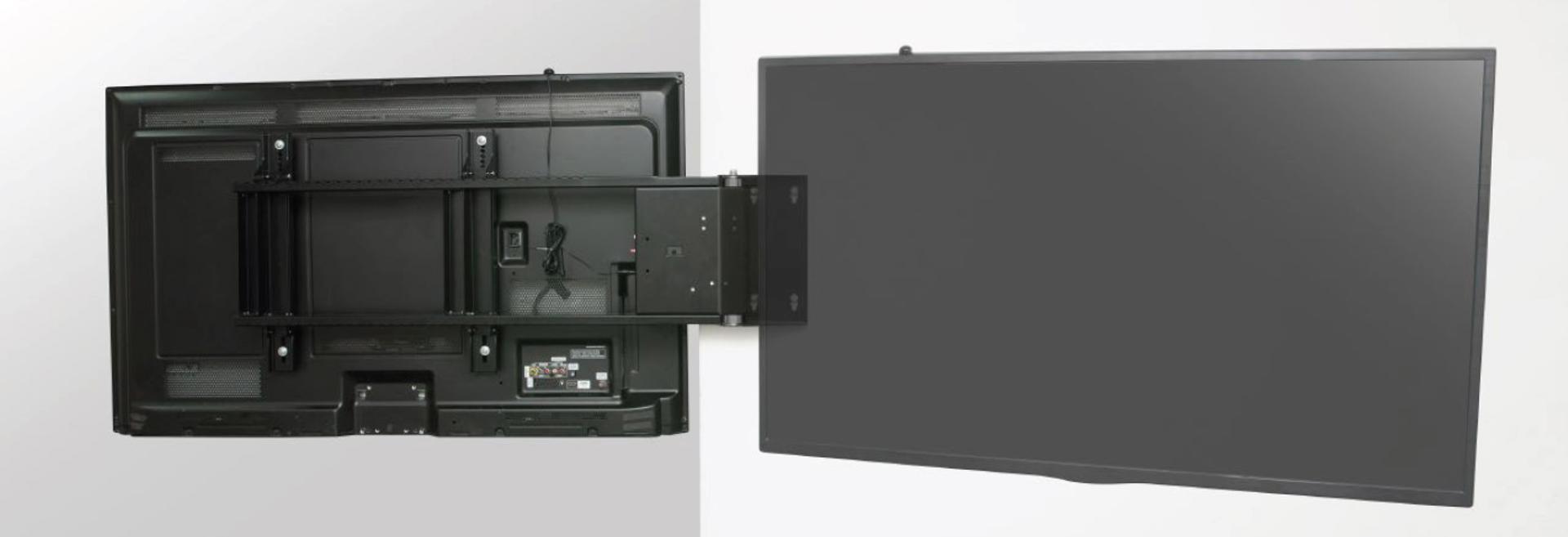

An installation example of a swing mount tv mount with a TV fitted as string ?? firstImage.Name

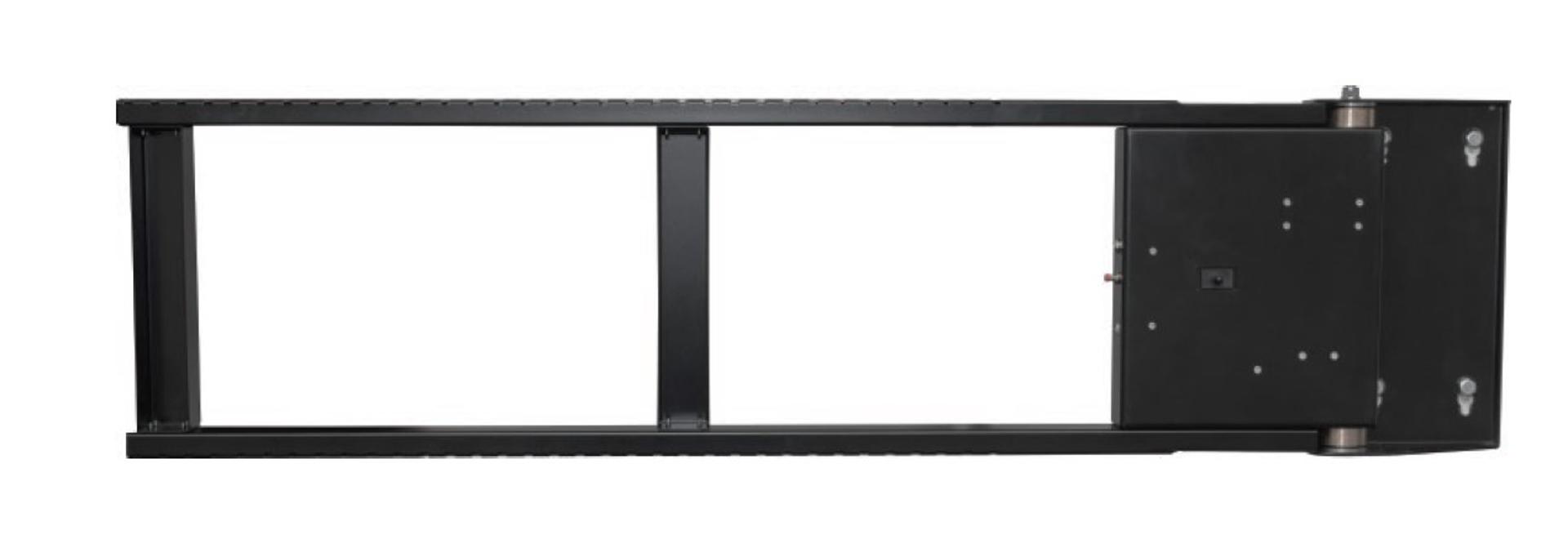

Swing Mount 180 L For TVs Up To 65"

Manufacturer: Sabaj Group

Code: SAB-SM-L-180

The Swing Mount series are a motorised TV wall bracket developed by Sabaj to be fitted onto a flat surface and swing your TV 180 degrees from its original starting position.

This swing mount is a great option for kitchen family rooms where you can adjust the viewing angle depending on where you are in the room, if you are preparing food in the kitchen area or sitting down in the living area

It is also an excellent choice in rooms where your seating position is not ideal for viewing your TV. it will allow you to position your furniture how you want to in your room and allow you to change the viewing angle of your TV when seated, while still being able to retract your TV back to the wall for neatness when you don’t need it.

It also has a manual tilt adjustment to help achieve your perfect viewing position.

It utilises a unique self learning system which allows you to operate and reveal your TV with your own TV remote control via the IR eyelet supplied with the lift.


Quantity

£166.65 ex VAT

Available for back order, approximately 15 days lead time.

Ask our experts about this product

Specifications

Product

Dimensions

W:978mm H:460mm D:82mm

Screen Mount

Type

Wall Mounted

Min TV Size

32"

Max TV Size

65"

Max TV Weight

35kg

Vesa Compatibility

100x100, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 400x100, 400x200, 400x300, 400x400, 600x100, 600x200, 600x400

Motorised Lift

Motorised Swivel/Swing

180°

Control Options

infrared

Safety Features

Obstacle Collision, Overload Protection

Key Features

  • Suitable for TV's Up to 65"
  • Swings the TV left or right 180 degrees
  • Self learning infrared receiver (use your own remote see additional information)
  • Manual 7 degree tilt up or down.
  • Obstacle collision function
  • Smooth and quiet operation
  • Active RJ45 Port

Package Includes

  • Sabaj 180 L Swing Mount
  • VESA mounting brackets for TV
  • Infrared Receiver Eyelet
  • NO REMOTE CONTROL IS SUPPLIED WITH THIS KIT

Additional Information

  • The Swing Mount 180-L is suitable for TV’s up to 65” and the Swing mount 180-XL is suitable for TV’s up to 75”
  • No need for any extra remote controls! Using a unique and easy to set up self-learning system built into the lift you can operate and reveal your TV with 99% of popular TV remote controls via the IR eyelet supplied with the lift.
  • Program up to 3 preferred positions.
  • Universal wall mounting so you can swing to the left or to the right.
  • Using a 10w electric and brushless DC motor with a patented built-in safety system. The swing mount will prevent function when hitting an obstacle whilst maintaining a smooth and quiet operation.
  • +/- 7° Manual tilt adjustment to allow for better viewing angles.
  • Built in spirit level for even easier assembly.
  • Compatible for TV's with VESA standards from 100 to 600 and everything in between
  • Has Active RJ-45 port built in so can be used with various additional accessories such as the K-SMRT or 2 Way K-PLC.
